Porting My Site from Jekyll to Hugo

This is the story of rebuilding this site. It started on Jekyll with the Chirpy theme, and I moved it over to Hugo with a custom look I’m calling “Spectrum”: the homepage is a live SDR waterfall, topics are frequency bands, and each post is a channel you tune into.

Why move off Jekyll

#

Chirpy is a good theme and it served me fine. But two things kept nagging me:

• Every local build meant Ruby, bundle, and a Gemfile.lock that liked to drift. On a Gentoo box that is more of a fight than it should be.
• I wanted the site to actually look like the stuff I write about. RF, SDR, RFID. A generic blog theme wasn’t saying any of that.

Hugo is a single binary, builds the whole site in under a second, and the templating is flexible enough to build something weird on top of a solid theme. I picked Blowfish as the base because it handles all the boring parts (SEO, taxonomies, search, RSS) and lets me override just the pages I care about.

Getting Hugo (the extended build)

#

Blowfish needs Hugo extended, and it wants a recent version. Portage only had an older one, and the GitHub Actions workflow I was going to deploy with pins 0.165. I didn’t want the version I build with locally to be different from the one that builds in CI, so I skipped the package manager and built it straight from source with Go:

CGO_ENABLED=1 go install -tags extended github.com/gohugoio/hugo@v0.165.0
~/go/bin/hugo version    # should say +extended

CGO_ENABLED=1 and the extended tag are what pull in the SCSS/WebP support. No root needed, it lands in ~/go/bin. Now local and CI are building with the exact same Hugo.

The idea: the site as a spectrum

#

Here’s the mental model I built everything around.

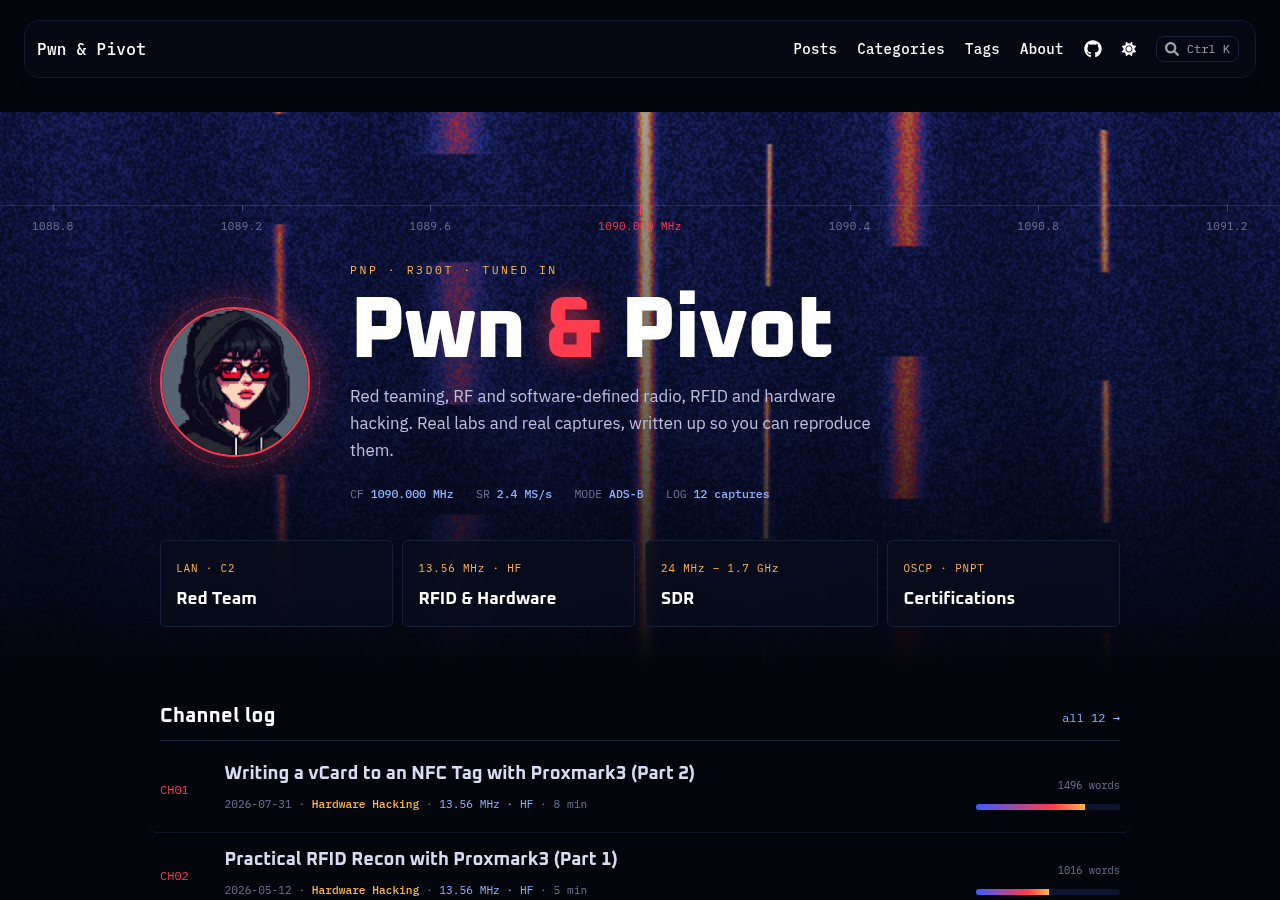

• The homepage is a receiver. There’s a waterfall scrolling behind the title with a frequency ruler sitting around 1090 MHz (that’s ADS-B, the aircraft band, my little nod to the airplane tracker post).
• Topics are bands. Each one gets a real-ish frequency: RFID sits at 13.56 MHz because that’s the actual NFC frequency, Burp gets TCP 8080, LDAP gets TCP 389, and so on.

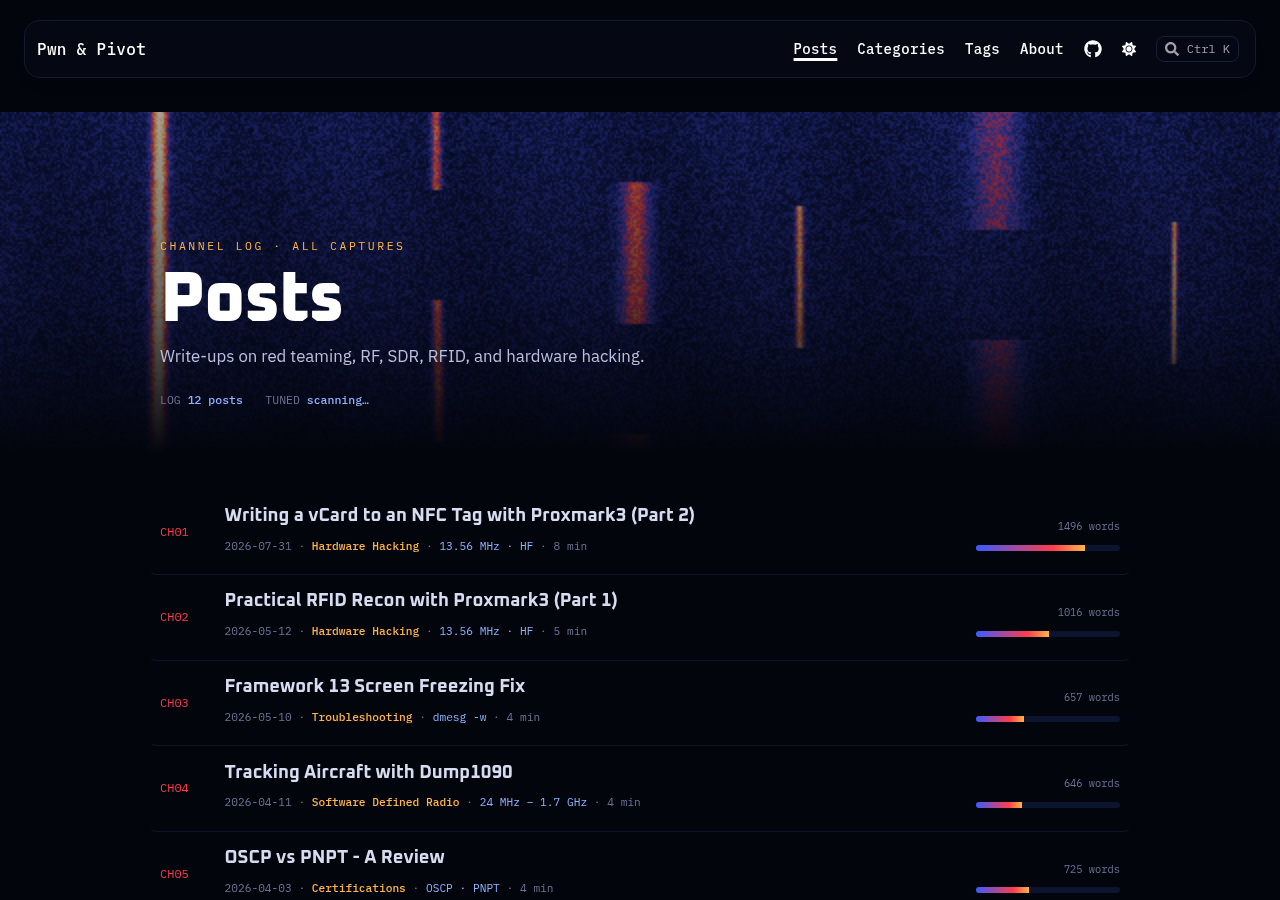

• Posts are channels. The post list looks like a scanner log: CH01, CH02, a date, the band, and a little signal-strength bar (which is really just word count).

Hover any band or channel and the waterfall tunes to it. An amber line slides over and a spike lights up at that frequency. It’s fake, but it’s the good kind of fake.

Building the waterfall

#

This was the fun part. I didn’t want a video or a gif, I wanted it drawn live so it’s tiny and never repeats. It’s one small script, about 80 lines.

The trick to a waterfall is you never redraw the old lines. Each frame you shove the whole image down by one pixel and only draw a fresh line at the top:

ctx.drawImage(s.c, 0, 0, W, H - 1, 0, 1, W, H - 1); // shift everything down 1px
// ...then compute and stamp one new row at y=0

For that new row, each pixel is background noise plus a few “carriers.” A carrier is just a bright bump at a position, drawn with a Gaussian so it’s bright in the middle and fades at the edges:

const dx = (fx - drift) / k.w;
v += k.a * 210 * Math.exp(-dx * dx);   // bright bump centred on the carrier

Then the strength value gets turned into a colour through a lookup table that ramps from near-black navy up through blue, red, amber, and finally white for the hottest signal.

A few things I made sure of because they matter more than the effect itself:

• If the visitor has reduce-motion turned on, it paints one still frame and stops. No exceptions.
• It only animates canvases that are actually on screen, and it pauses when the tab is hidden. No point cooking someone’s battery for a background.
• It renders at half resolution internally. On a waterfall you genuinely cannot tell, and it’s much cheaper.

One file to map topics to frequencies

#

I didn’t want frequency numbers hardcoded all over the templates. So there’s one data file that maps every category to its label and its position on the waterfall (0 is the far left, 1 is the far right):

categories:
  rfid:                   { freq: "13.56 MHz · NFC",   pos: 0.34 }
  software-defined-radio: { freq: "24 MHz – 1.7 GHz",  pos: 0.62 }
  burp-suite:             { freq: "TCP 8080",          pos: 0.22 }

A little partial looks a topic up in there. If a topic isn’t listed, it hashes the name into a stable position so it still lands somewhere sensible instead of crashing. That means I can add a post in a brand new category and the site won’t break, it just won’t have a hand-picked frequency until I add one.

Bringing the posts over

#

All the posts came over from Chirpy. The content was basically fine, but two things needed converting:

• Callouts. Chirpy uses {: .prompt-tip} style blocks. Hugo uses > [!TIP], > [!NOTE], > [!WARNING]. Those got swapped over.
• Image paths. The screenshots inside posts all live under static/assets/img/posts/ so the old links keep working without touching a single post body.

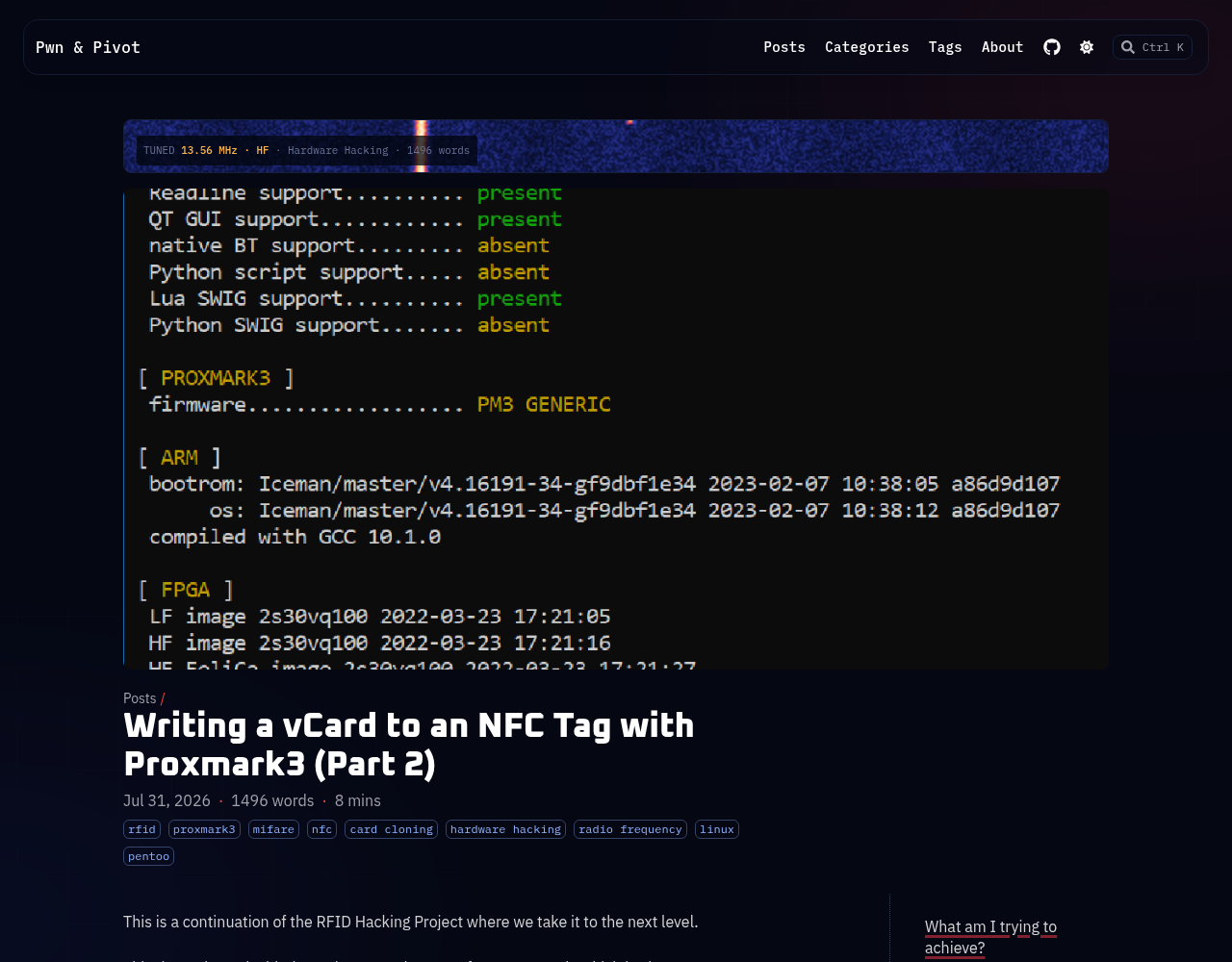

Each post also gets its own little tuned waterfall strip above the hero image, set to that post’s band. Small touch, but it ties the whole thing together.

Not breaking the old links

#

This was the part I refused to get wrong. The site has been up for a while, search engines know the URLs, and I’ve linked posts to each other. Breaking those on a redesign is how you throw away every bit of SEO you built.

Hugo builds posts at /posts/<slug>/, same as Chirpy did, so those all matched already. But I still checked every single one instead of assuming:

for f in _posts/*.md; do
  t=$(basename "$f" .md | sed -E 's/^[0-9]{4}-[0-9]{2}-[0-9]{2}-//')  # strip the date
  [ -f "public/posts/$t/index.html" ] && echo "OK $t" || echo "BROKEN $t"
done

They all came back OK. Two other things did need fixing:

• /archives/ didn’t exist in Hugo. I pointed it at the posts list with an alias in the section’s _index.md:

  aliases: ["/archives/"]

• The RSS feed. Chirpy served it at /feed.xml, Hugo serves /index.xml by default. Anyone subscribed would have silently lost the feed. One setting fixes it:

  [outputFormats.RSS]
    baseName = "feed"

  Heads up if you copy this: that renames the feed everywhere, so any link that pointed at /index.xml now needs to point at /feed.xml. I had one in the author links that bit me.

The About page and mobile

#

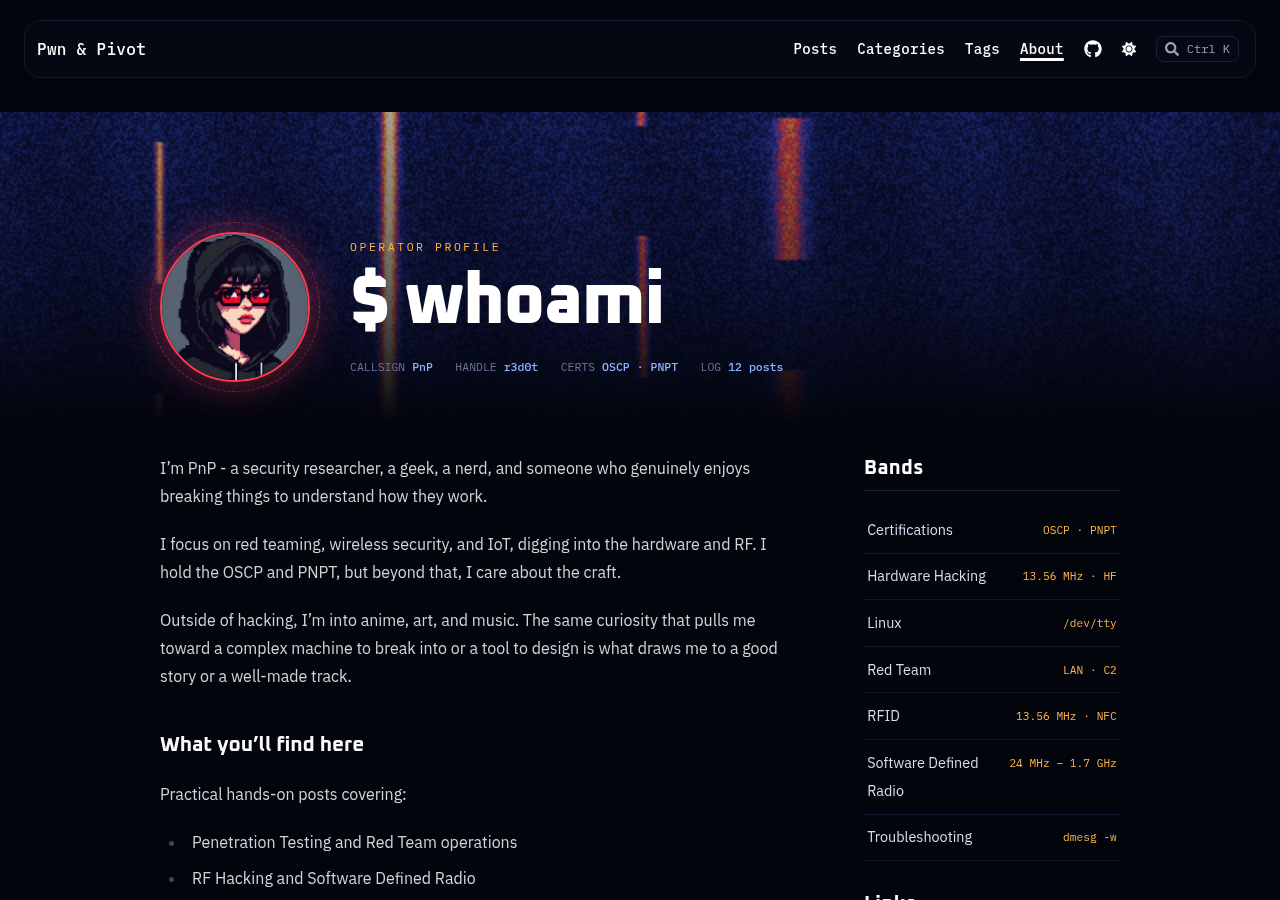

The About page got the same treatment: an “Operator profile” header over the waterfall, the bio on the left, and a sidebar of bands and links on the right.

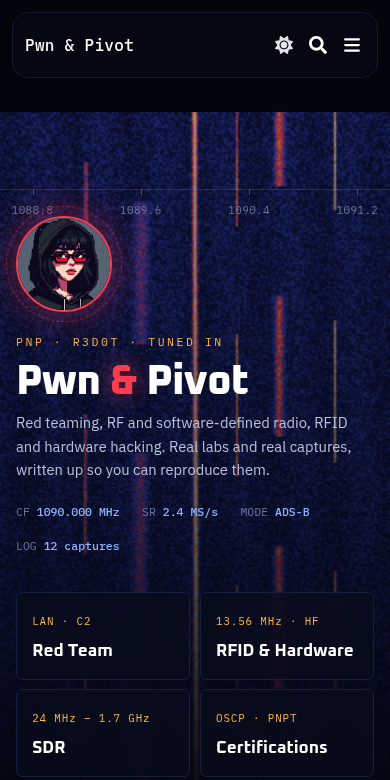

And because half of anyone’s traffic is on a phone, I checked every page at 390px wide for sideways scroll. The bands go from four columns to two, the signal meter on channel rows drops off, and the sidebar slides under the text.

Deploying

#

No more Ruby in CI. The whole thing is a single GitHub Actions workflow that installs Hugo extended, builds, and pushes to Pages on every push to main. The nice part: if it ever goes wrong, flipping the Pages source back to the old branch restores the Jekyll site, because that history is still in the repo.

What I’d tell myself starting over

#

• Build with the same Hugo version as CI from day one. Chasing a “works locally, breaks in Actions” bug over a version mismatch is a waste of an evening.
• Put the moving numbers in one data file. I’m glad it exists every time I add a post.
• Check the old URLs before you’re proud of the new design, not after someone emails you that their bookmark 404s.

That’s the build. The effect is a gimmick, sure, but it’s a gimmick that matches what the site is about, and everything under it is a normal, fast, boring-in-a-good-way Hugo site.
